Aluminum U Channel Glass Railing

Application:Residential,Commerical,Villa,Hotal,Mall,Building
Design Style:U channel glass railing
Place of Origin:Guangdong, China
Position:Deck,Patio,Terrace,Porch,Stair,Balcony,Rooftop,
U channel Material:Aluminum, S.S304, S.S316, S.S316L,
U Base size:45*120mm, 62*102mm, 70.5*102mm,
Surface treatment:powder coating, oxidation, electroplating,
Glass:Tempered Glass/Laminated Glass
Glass thickness:6mm, 8mm, 10mm and 12mm
Design:OEM Serviced Provided

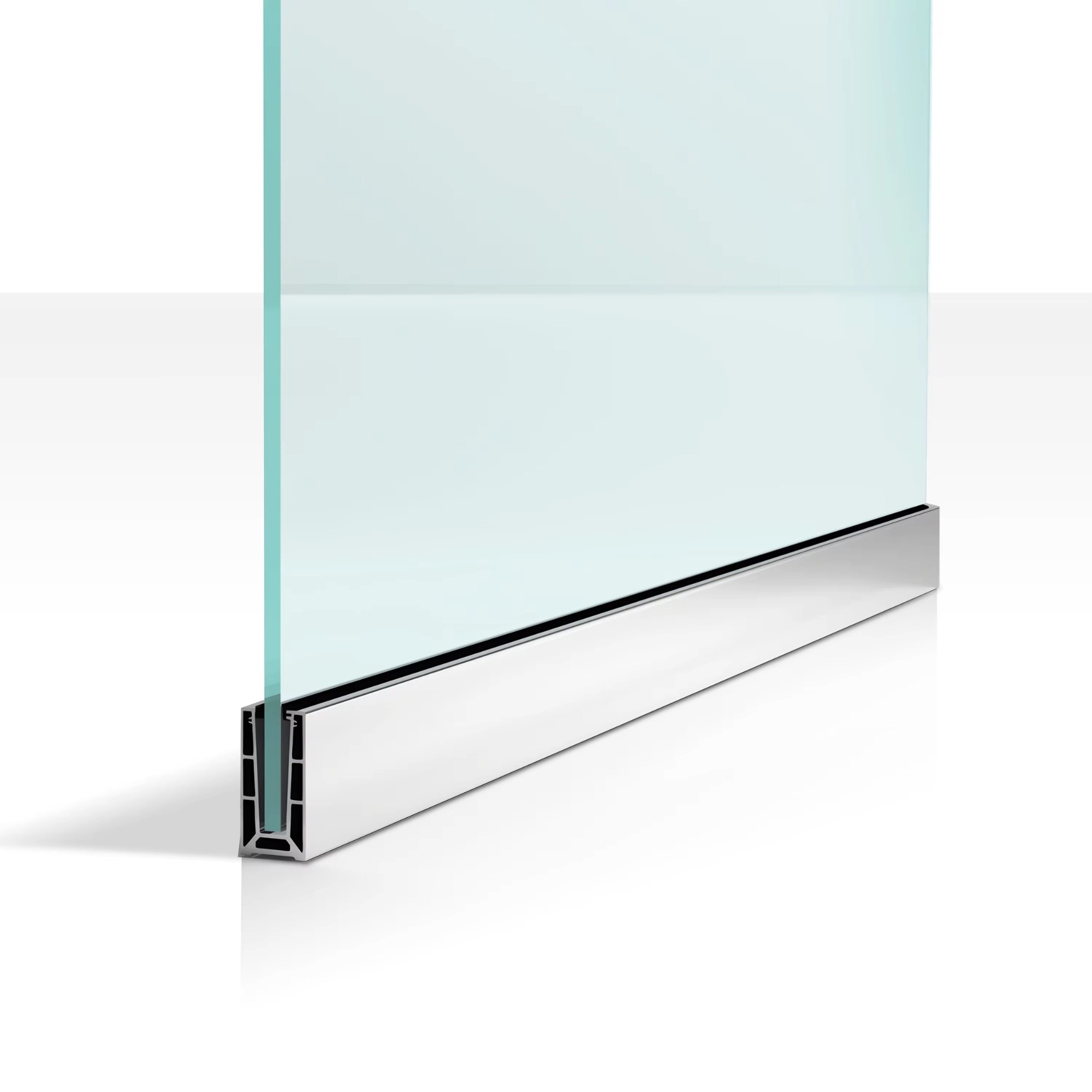

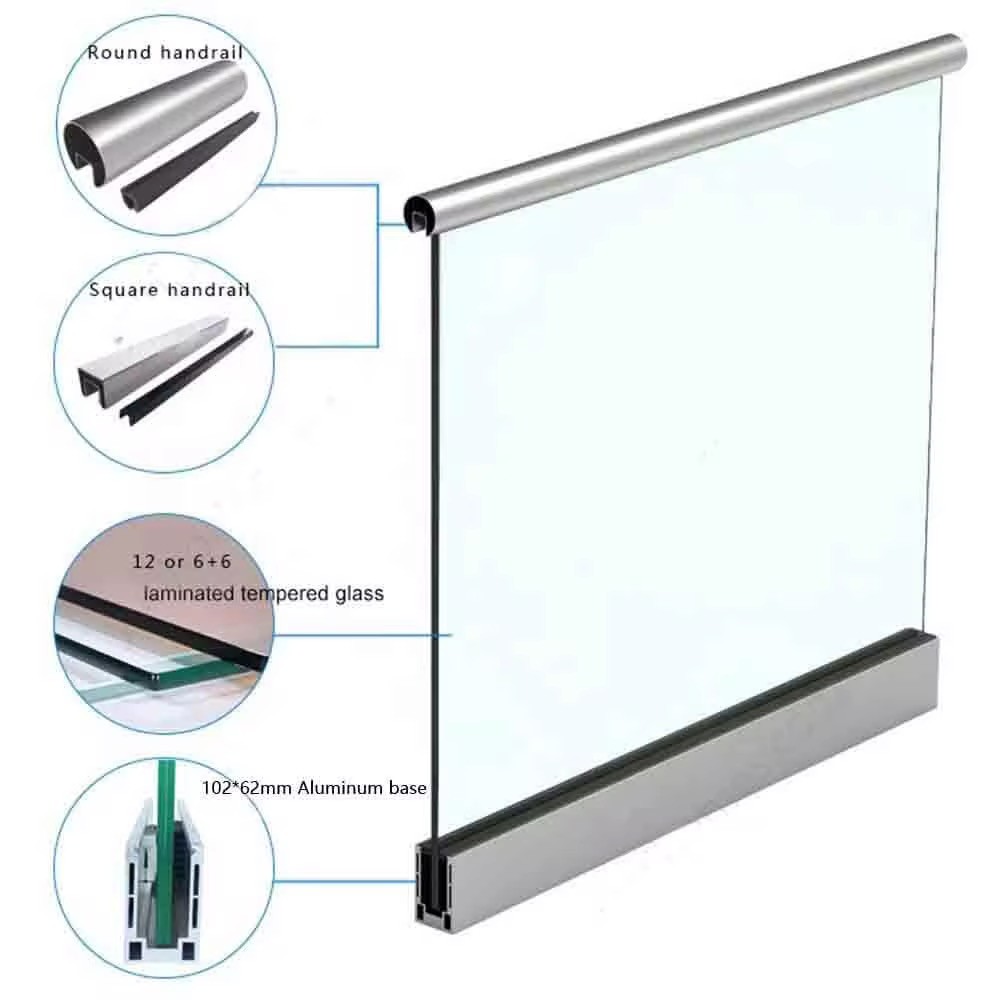

U Channel Base Details

Model frame parts:
Made by aluminum alloy base with slot mainly. Also the U base can be customize by carbon steel, 304ss, 316ss, 316L ss,
Aluminum U base size:
45*120mm, 60*140mm, 62*102mm, 66.5*135mm, 70.5*102mm, 45*210(side mount).etc.,
Stainless steel base size:
30*50*5mm, 32*60*6mm, 34*70*6mm, 36*70*8mm. etc.,
Base cover:
Customize
Fastener:
Use rubber into slot to hold it.
LED Light (option):
ø1-1/2″ or ø2″ with 3000K or 4000K LED, Medium or High intensity, Clear or Frosted lens
LED Light Application:
Balcony, terrace, floor, indoor, ourdoor both Ok

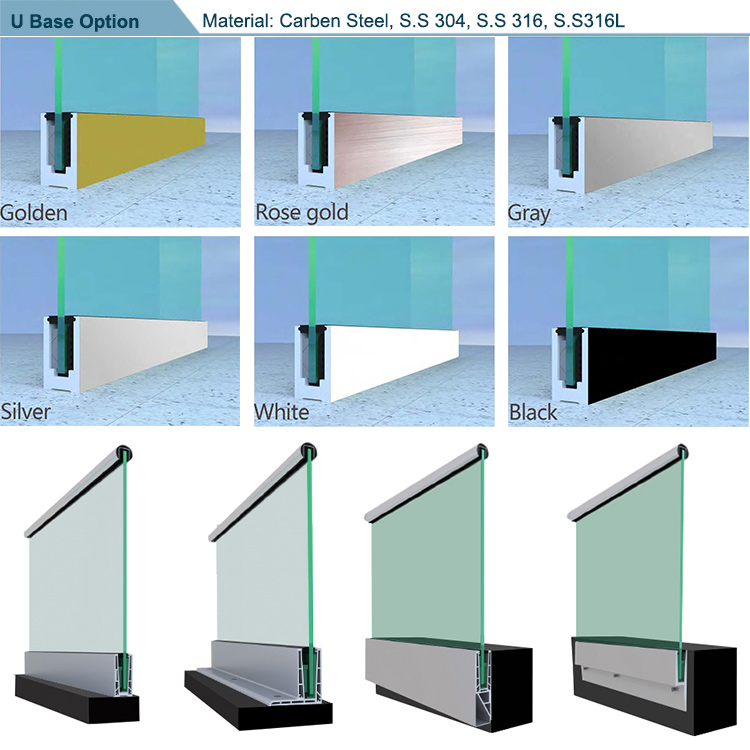

Base surface Treatment:
powder coating, oxidation, electroplating,
Installation Method:
floor mount, side mount ( fascia mount), core mount,
Package:
pp bag with paper box, packed into plywood box
U channel railing base
U Channel Railing Glass Details
U channel glass panels with a singl glass thickness of 10mm(3/8”), 12mm(1/2”), 15mm(9/16”) and laminated glass thickness of 10.76mm,13.52mm, 17.52mm, 21.52mm. Tempered safety glass with AS/NZS 2208, CE and SGCC certification.
Glass Type Available:
tempered glass, laminated Glass,float glass,
Sign Tempered Glass Thickness:
10mm, 12mm, 15mm,
Laminated Glass Thickness:
5+5mm, 6+6mm, 8+8mm,10+10mm, 12+12mm or Customize
Float Glass Thickness:
10mm, 12mm, 15mm available
PVB Laminated Filler:
0.75mm, 1.14mm, 1.52mm, 1.9mm available
SGP Laminated Filler:
0.89mm, 1.52mm, 2.28mm available
Surface Option:
frosted, sandblasting, non
Color:
Clear,ultrawhite, tinted, blue, grey, brown, red, light black,
Glass Package:
plywood carton with protection
